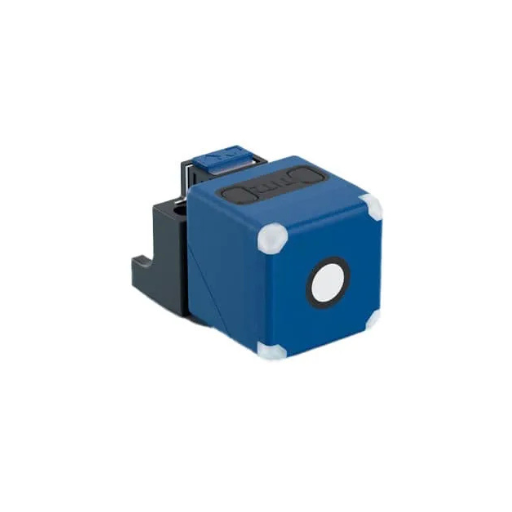

cube-35/F Microsonic Vietnam
cube-35/F Microsonic Vietnam is a cube ultrasonic sensor manufactured by Microsonic – one of the world’s leading companies in ultrasonic sensor technology. With a compact design, easy installation, and the ability to detect objects regardless of color or surface, cube-35/F is the ideal choice for applications in the automation industry.
Specifications
| Parameter | Value |
|---|---|
| Model | cube-35/F |
| Manufacturer | Microsonic |
| Measuring distance | 65 – 350 mm |
| Output signal | 1 × analog (0–10V or 4–20mA) + 1 × switching output (PNP/NPN) |
| Power supply | 20–30 VDC |
| Operating frequency | 320kHz |
| Resolution | < 1 mm |
| Connector | M12 connector, 5 pin |
| Shell material | Strong ABS plastic |
| Protection level | IP67 |
| Operating temperature | -25 to +70°C |
| Size | 35mm × 35mm × 25mm |
Application
-
Packaging Line : Detects boxes, packages or products in various sizes.
-
Sorter : Locates products on conveyor.
-
Food Industry : Detecting objects in dusty or wet environments.
-
Robot system : Detect distance and avoid obstacles accurately.
-
Automated warehouse : Detects tray position, controls storage compartment filling level.
