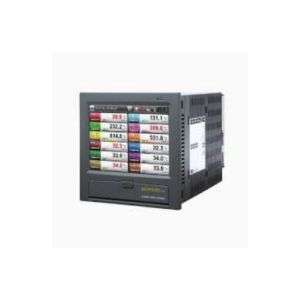

SDR112-NNN Samwon Vietnam
In modern industrial and production environments, temperature control plays an extremely important role in ensuring product quality and production process stability. SDR112-NNN Samwon Vietnam is one of the outstanding digital temperature controller lines, favored for its high accuracy, friendly interface and flexible application in many industries.
Specifications
| Parameter | Detail |
|---|---|
| Model | SDR112-NNN |
| Trademark | Samwon Tech – Korea |
| Power supply | 100–240VAC, 50/60Hz or 24VDC optional |
| Sensor input | Thermocouple (K, J, T, E, N, R, S, B), RTD (Pt100) |
| Control output | Relay, SSR, or analog output (depending on model) |
| Control mode | Auto-tuning PID, ON/OFF |
| Size | 48mm x 48mm (DIN 1/16) |
| Display screen | 4 digit LED, bright red, easy to read |
| Temperature measuring range | -200°C to +1600°C depending on sensor type |
| Media | No / optional RS-485 (Modbus RTU) |
| Protection standards | IP65 (front) |
| Operating temperature | -10 to 50°C |
| Quality standards | CE, RoHS |
Outstanding advantages
-
Compact design, international standards : Standard DIN size 48x48mm for easy installation in industrial electrical cabinets or built-in equipment.
-
Clear display : LED screen clearly displays actual and preset temperature values, making it easy for users to monitor and adjust.
-
Diverse output options : Supports Relay, SSR or Analog output to suit various types of terminals.
-
Easy to operate and install : Intuitive push button interface, quick configuration, reduces technician training time.
Application
-
Plastic and rubber industry : Temperature control in extruders, plastic injection molding machines, rubber molding machines.
-
Textile and dyeing industry : Application of temperature control in dyeing tanks and fabric dryers.
-
Food and beverage industry : Used in food cooking, fermentation, and drying systems.
-
Electronics industry : Temperature stabilization in soldering furnaces and component testing chambers.
-
HVAC industry : Temperature control in industrial air conditioning systems, drying cabinets, furnaces.
