ULM-70N-20-FI-B1-C Dinel Vietnam

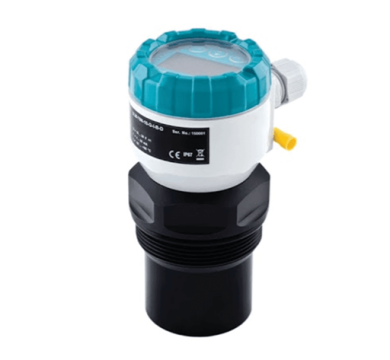

The ULM-70N-20-FI-B1-C ultrasonic sensor from Dinel Vietnam is a non-contact level measuring device, ideal for liquid and solid level measuring applications in tanks, silos or industrial tanks. The product stands out with its sturdy design, stable operation in many different environmental conditions, especially suitable for the food, water treatment, chemical industries and many other automation fields.
Specifications
| Parameter | Value |
|---|---|
| Model | ULM-70N-20-FI-B1-C |
| Manufacturer | Dinel |
| Measuring range | 0.25 – 20 m |
| Output signal | 4…20 mA (Two-wire – loop-powered) |
| Power supply | 18…36 VDC |
| Operating frequency | 40kHz |
| Broadcast angle | ~ 8° |
| Resolution | 1 mm |
| Error (Accuracy) | ±0.25% of full range or ±10 mm (depending on conditions) |
| Working temperature | -30 °C to +70 °C |
| Protection standards | IP68 |
| Shell material | PVDF or Polycarbonate |
| Mechanical connection | G1½” |
| Electrical connection | M12, 4 pins |
Advantage
-
Non-contact level measurement : Using ultrasonic technology, the device does not come into direct contact with the medium, limiting wear and adhesion.
-
Waterproof, dustproof : With IP68 protection standard, the device works well in wet, harsh environments.
-
High Accuracy : With low error and resolution up to 1 mm, ensures reliability when monitoring liquid or solid levels.
-
Easy installation and configuration : Industrial standard connection, easy integration into PLC or SCADA systems.
-
Save maintenance costs : Durable design, no need for frequent calibration, minimizing operating costs.
Popular Applications
-
Wastewater treatment : Measure water level in holding tank, settling tank or filter tank.
-
Food and beverage industry : Level monitoring of liquid materials such as milk, juice, syrup.
-
Chemical industry : Measuring the level of corrosive chemicals in tanks.
-
Agriculture : Monitoring irrigation water levels or grain levels in silos.
-
Fuel tank system : Measure the level of gasoline and oil in large tanks.
